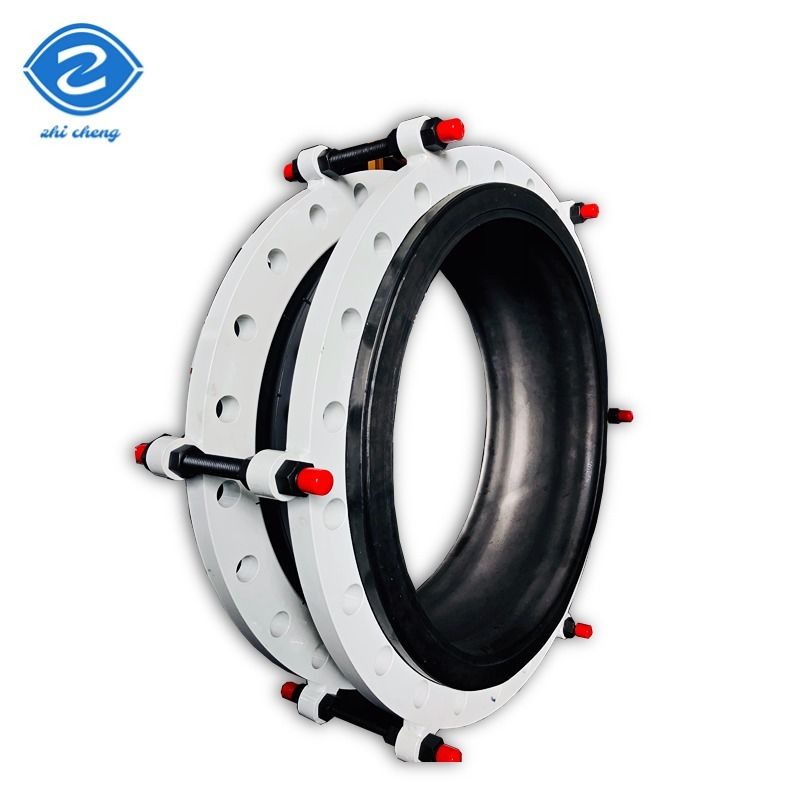

Diamond Flange Rubber Expansion Joint Pipe Fittings Compensator DN450 DN100 Ball Connector Epdm Single Flange Sphere Bellow
Company Profile
Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission: Improve product details through innovation to meet user needs.
Our values: Integrity and standardization, cooperation and win-win
Main products: Rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters, fabric expansion joints, bellows
Product Description
Pump And Valve Connectors Tubular Waterproof Joints Flange Type Flexible EPDM Expansion Joints
Specification
| Material of rubber joint |
| No. |
Name |
Material |
| 1 |
Outer/inner rubber |
NR, NBR, EPDM, SBR, BR etc. |
| 2 |
Frame |
Nylon card fabric |
| 3 |
Pressurized ring |
Steel wire strand |
| 4 |
Flange |
Q235 carbon steel, 304 stainless steel etc. |
| Technical conditions of rubber joint |
| Type |
1 |
2 |
3 |
| Working pressure(Kg f/cm2) |
1.0(10) |
1.6(16) |
2.5(25) |
| Explosion pressure(Kg f/cm2) |
2.0(20) |
3.0(30) |
4.5(45) |
| Vacuum value(mmHg) |
2.0(20) |
86.7(650) |
100(750) |
| Applicable temperature |
-15℃ ~ +80 ℃ (-30℃~+150℃ special) |
| Applicable media |
Air, compressed air, water, sea water, hot water, oil, acid and alkali etc |
For Quick Quotation
Please provide the following information:
- Media type (water, oil, etc.)
- Nominal diameter
- Type (equal or reducing shape)
- Material of rubber and flange
- Flange standard (ANSI, DIN, etc.)
- Nominal pressure (150lb or 300lb)
- Length of rubber sphere
- Total quantity needed
Advantages
- Excellent pressure resistance with spherical structure and special reinforcing
- Superior absorption of vibration, noise, and shock
- Compensates for greater elongation, compression, lateral and angular movement
Classification of Rubber Joint
Counterclamp Type
For quick quotation, please provide:
- Nominal diameter
- Work pressure
- Applicable medium
- Material
- Applicable temperature
- Length
- Quantity
Packing & Delivery
Shipping Options:
- FedEx/DHL/UPS/TNT for samples (Door-to-Door)
- By Air or By Sea for batch goods (LCL/FCL)
- Customer-specified freight forwarders
Delivery Time:
- In stock: Immediately
- Sample: About 3 days
- OEM/ODM: About 15 days
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% deposit, 70% before delivery) or L/C at sight.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems occur, products can be returned or handled according to consumer's requests.
Q: Do you accept small quantity order?
A: Yes, we accept small quantity orders.
Q: What is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 days for delivery, depending on order quantity.
